Product Title

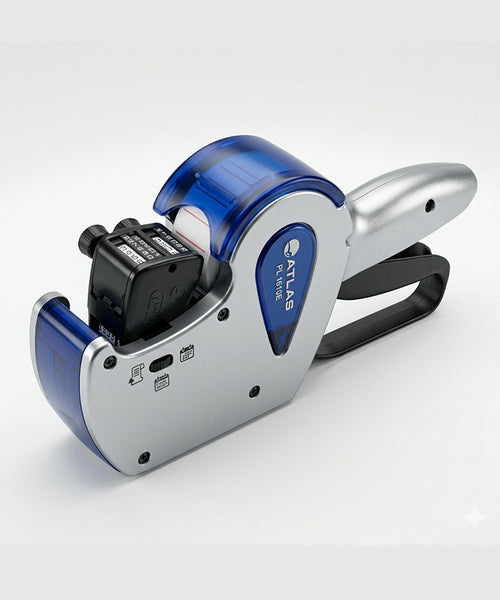

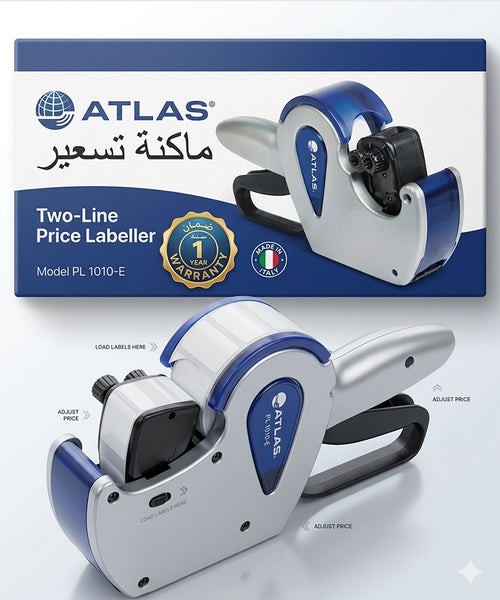

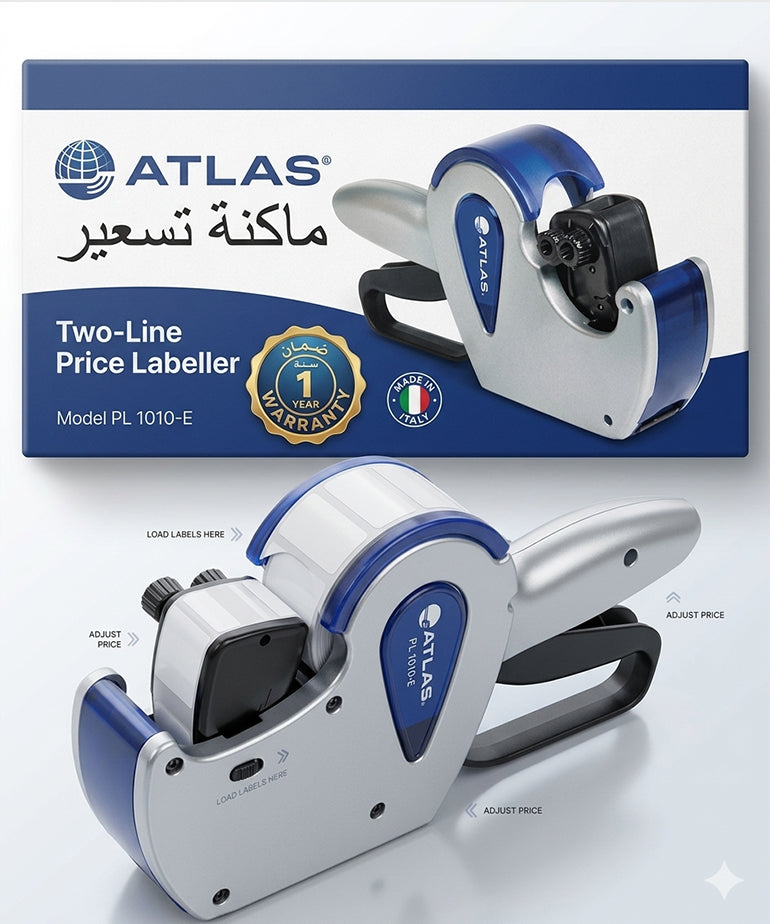

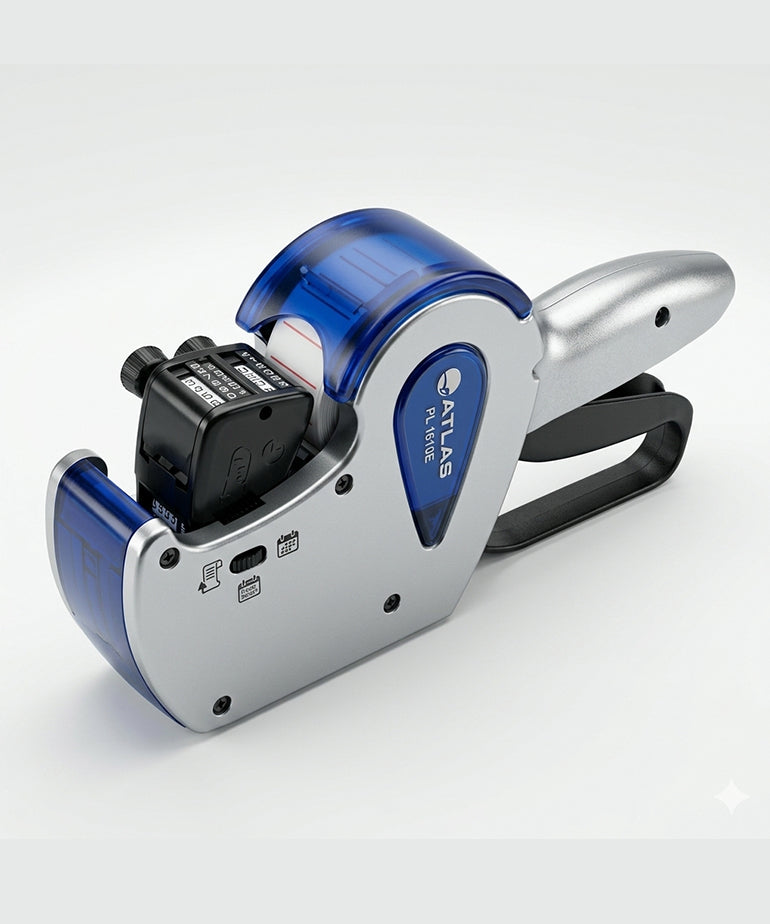

Atlas PL-1010E Two Line Price and Date Label Gun – 10x10 Digits

Product Overview

Efficiently tag your inventory with the reliable Atlas PL-1010E Two-Line Price and Date Label Gun. This high-quality, professional-grade labeller is designed for fast, accurate operation in retail, warehouse, and office environments. Capable of printing two lines of information simultaneously, this tool allows you to clearly display crucial data such as prices, expiration dates, batch numbers, codes, weights, and quantities.

Key Features

• Two-Line Printing: Prints two independent lines of information.



• High Character Capacity: 10 digits per line (Top: 10 digits; Bottom: 10 digits).



• Versatile Use: Ideal for Dates, Prices, Codes, Weights, Quantities, Measurements, and Discounts.



• Durable Design: Solid construction with an ergonomic, comfortable grip for prolonged use.



• Italian Quality: Expertly designed and manufactured in Italy.

• Smooth Operation: Features a two-slit pulling mechanism for accurate label feed.



• Easy Loading: One-touch open system makes changing label rolls quick and simple.

  Specification	Details
  Model	PL-1010E
  Lines	2 Lines
  Digits per Line	10 Digits (Top) / 10 Digits (Bottom)
  Label Size Used	26mm x 16mm (available in rectangular or wavy edge)
  Replacement Ink Roller	Compatible with Atlas PLS900IR / PLS910IR ink rollers (Black)
  Operation	Manual / Handheld
  Design	Ergonomic, Compact
  Origin	Made in Italy

  Ideal For

  • Retail Stores (Supermarkets, Boutiques, Convenience Stores)



  • Manufacturing (for batch coding and manufacturing dates)

  • Inventory Management (for labeling shelves and bins)



  • Offices

  ---

  [FOR THE OPTIONAL 'HOW TO USE' ACCORDION/SECTION]

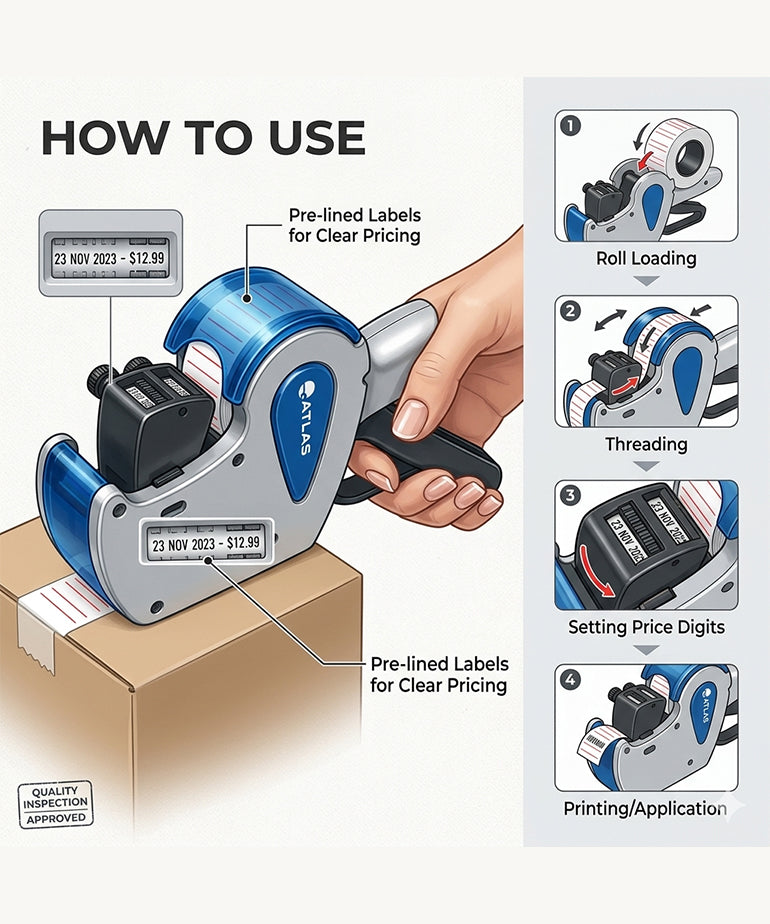

  Quick Guide: How to Use the Atlas PL-1010E

  1. Loading the Labels:

  • Squeeze the release triggers on the side to open the top cover.

  • Push the base plate release buttons forward to swing open the bottom base plate.

  • Slide a 26x16mm label roll onto the spool.

  • Thread the leading edge of the labels through the internal mechanism.

  • Close the top cover. Ensure the labels feed correctly through the bottom mechanism, then close the base plate until it clicks shut.



  2. Setting the Characters:

  • Pull out the dial knobs to select the line you want to adjust (top or bottom).

  • Rotate the knob until the desired digit or symbol is visible in the display window.

  • Repeat for each digit space.

  3. Labeling:

  • Set your desired date, price, or code.

  • Hold the gun flush against the product surface.

  • Squeeze the trigger to print and apply the label in one motion.

  4. Changing the Ink Roller:

  • Open the front compartment of the gun.

  • Remove the old ink roller.



  • Insert the new compatible ink roller (PLS900IR / PLS910IR) and secure it until it clicks.
